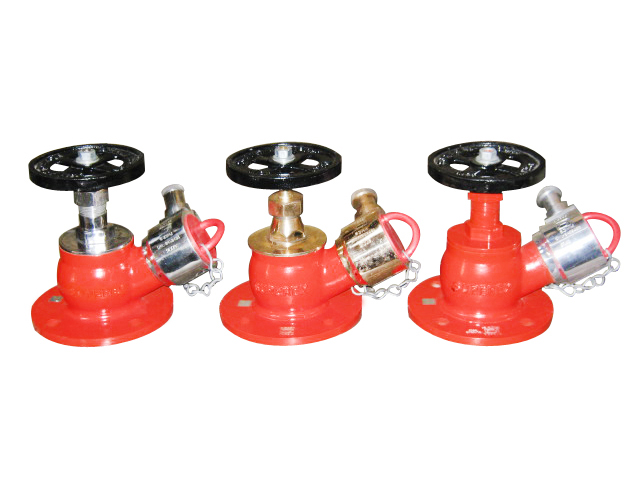

Single Outlet Landing Valve

Larger View: Click on Image
(63mm Single Outlet Landing Valve Type A, ISI Marked, having 75mm NB inlet, 200mm OD, 160mm PCD & 63mm Female Inst. Outlet.) (Oblique pattern)
Material Stainless Steel, Gunmetal LTB2, Aluminum
Size 63 mm (or as per client requirement).
Inlet Flanged (as per client requirement)
Outlet Instantaneous  Generally Female. (Male Inst. Outlet available on request).

Performance Test
Hydraulic Test 21kgf/cm2
Water Tightness Test 14kgf/cm2
Flow Test 900 LPM at 7 kgf/cm2
Specification IS:5290
Warranty 1 year
arrow
top

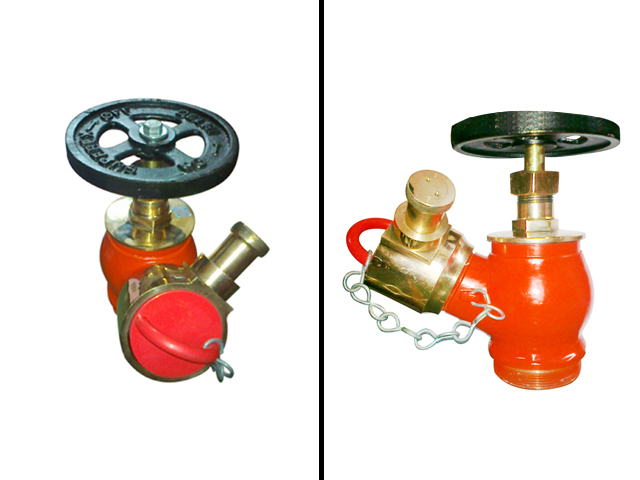

Oblique Threaded Type

Larger View: Click on Image
Material Gunmetal LTB2, Aluminum
Size 63 mm (or as per client requirement).
Inlet Threaded
Outlet

Instantaneous Generally Female. (Male Inst. Outlet available on request).

Performance Test
Hydraulic Test 21kgf/cm2
Water Tightness Test

14kgf/cm2
Warranty 1 year.

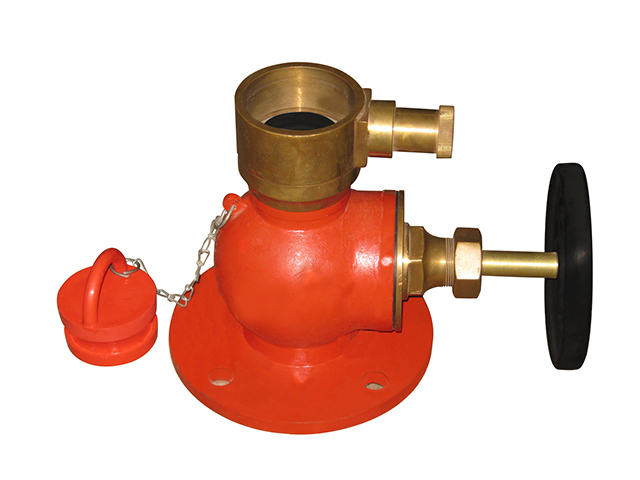

Oblique Straight Type

Larger View: Click on Image
Material Gunmetal LTB2, Aluminum
Size 63 mm (or as per client requirement).
Inlet Flanged
Outlet

Generally Female. (Male Inst. Outlet available on request).

Performance Test
Hydraulic Test 21kgf/cm2
Water Tightness Test

14kgf/cm2
Warranty 1 year.

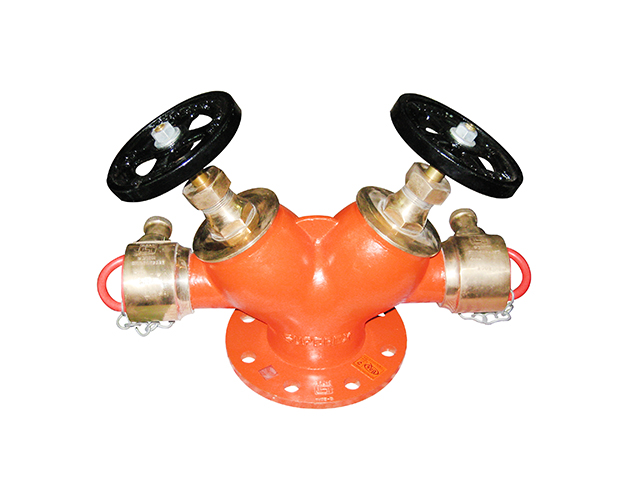

Landing Valve Double Outlet (Type B)

Larger View: Click on Image
Material

Gunmetal IS: 318 LTB2, Aluminium and Stainless Steel

Size 63 mm Double Outlet Type-B (Oblique Pattern).
Inlet

Flanged

Outlet

Female Instantaneous (Male Inst. Outlet available on request).

Performance Test
Hydraulic Test 21kgf/cm2
Water Tightness Test

14kgf/cm2
Flow Test 1800 LPM at7 kgf/cm2
Specification IS: 5290
Warranty 1 year.

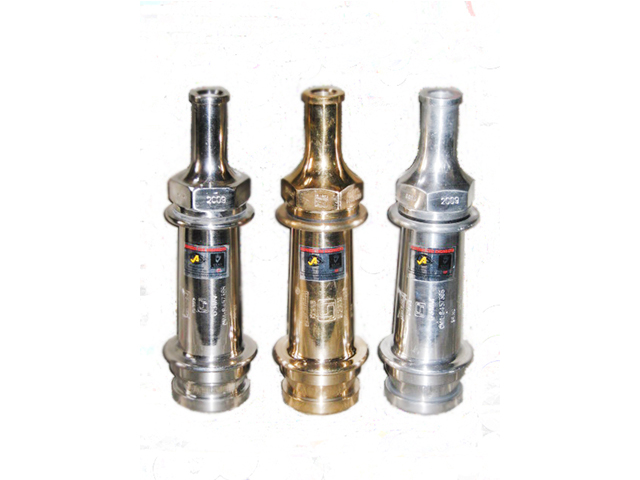

Short Branch Pipe

Larger View: Click on Image
Material Stainless Steel, Gunmetal (LTB-2), Aluminium, (or as per client specification).
Size 63 mm (or as per client requirement).
Bore Size of Nozzle 12 to 20mm

Performance Test
Hydraulic Test 21kgf/cm2
Specification IS: 903
Warranty 1 year

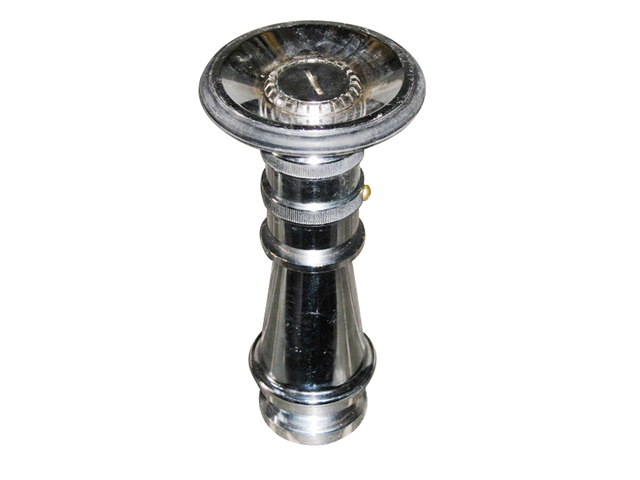

Diffusor Branch Pipe

Larger View: Click on Image

Triple Action Diffuser / Triple Action Branch
Types of sprays facilitates Spray, Hallow Jet, Solid Jet, Shut off
Material Gun Metal (LTB-II)
Specification IS: 2871

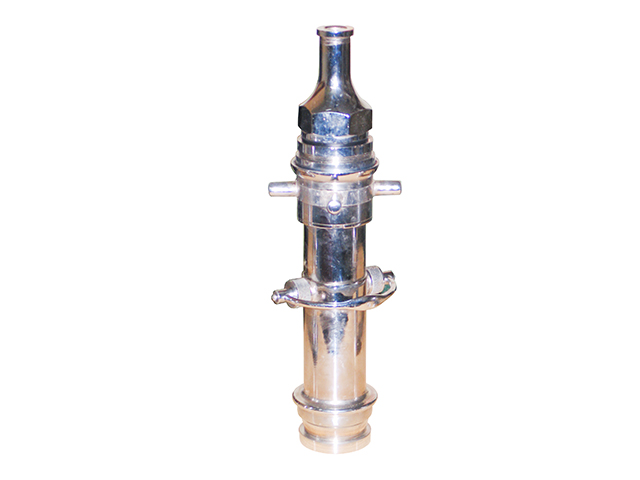

London Hand Control / London Pattern

Larger View: Click on Image
Material Gunmetal grade LTB-II (or as per client requirement)
Size 63 mm
Hydraullic Pressure 21kgf/cm2
Outlet Instantaneous  Generally Female. (Male Inst. Outlet available on request).

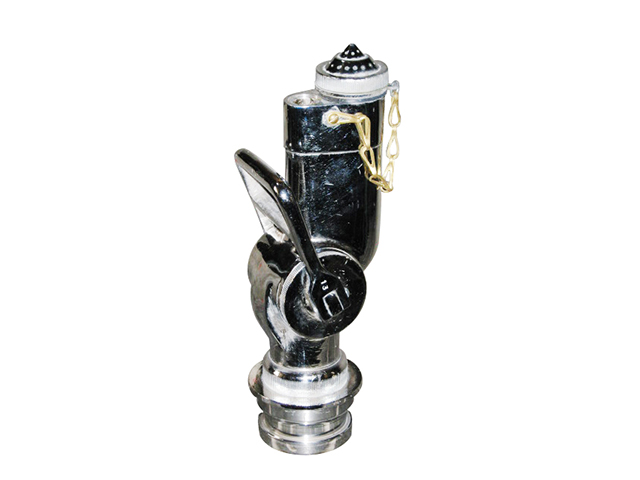

Fog Nozzle

Larger View: Click on Image
Material LTB-2/Aluminium Alloy
Inlet Male Coupling as per IS : 903
Fog Head 45-50 nos. of Orfices with 1.5 mm dia
Applicator Tube 1.75 mtr of Aluminium/Brass (Optional)
Horizontal Throw

6-8 metres
Flow 200-225 l/min at a pressure of 7 kgf/cm2
Specification As per IS: 952
Hydraulic Pressure To with stand a pressure of 21 Kgf/cm2 for a period of 2 minutes

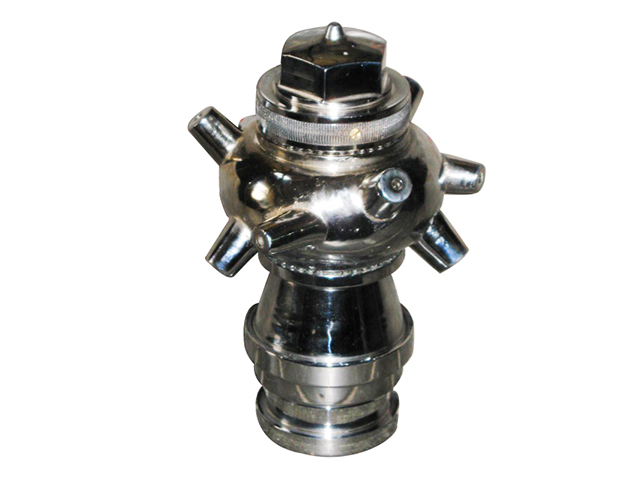

Revolving Branch Pipe

Larger View: Click on Image
Material LTB-2/Aluminium Alloy
Inlet Male Coupling as per IS: 903
Min. Pressure 5 Kgf/Cm2 to revolve
Specification

As per IS: 952
Hydraulic Pressure To with stand a pressure of 21 Kgf/cm2 for a period of 2 minutes

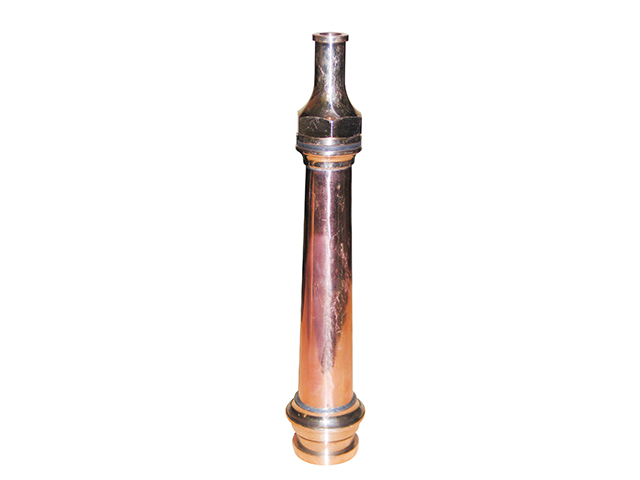

Long Branch Pipe

Larger View: Click on Image
Material Gunmetal (LTB -II) or as per client requirement.
Size 63 mm
Hydraullic Test 21 kgf/cm2

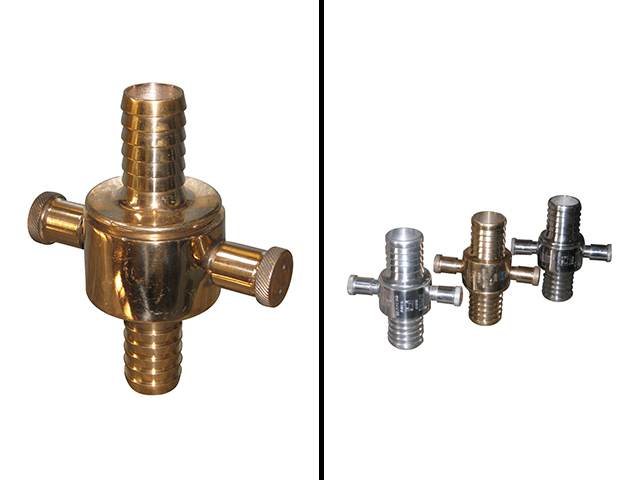

Fire Hose Delivery Couplings (Male Female Couplings)

Larger View: Click on Image
Material Stainless Steel, Gunmetal IS:318 LTB2, Aluminum
Size 38 - 63 mm
Performance Test Hydraulic Test @ 21kgf/cm2
Specification IS:903
Warranty 1 year
Note Stainless Steel and alumunium are less prone to theft.

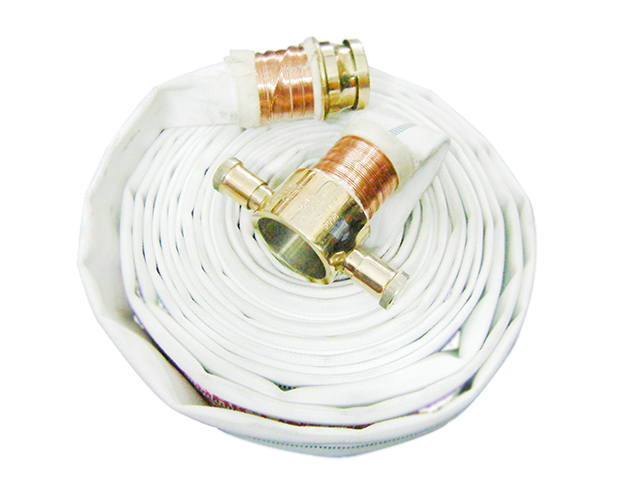

FIRE HOSE PIPE \ RRL HOSE PIPE (ISI marked)

Larger View: Click on Image

Material Rubber Reinforced Lined (RRL) Hoses
Size

63 mm x 15 mts (Standard) (Length as per client requirement)
Couplings Gun Metal (LTB-II), Aluminium, Stainless Steel (wound at the end of Hose Pipe)
Binding Wire Copper or G.I Wire
Specification IS: 636
Hyd Pressure Tested at Hydraulic Pressure 21.4 Kg/cm2 with Burst pressure 35.7 kg/cm2

Note: - Above said Delivery Couplings bear SUPEREX make and ISI mark conforming to IS: 903

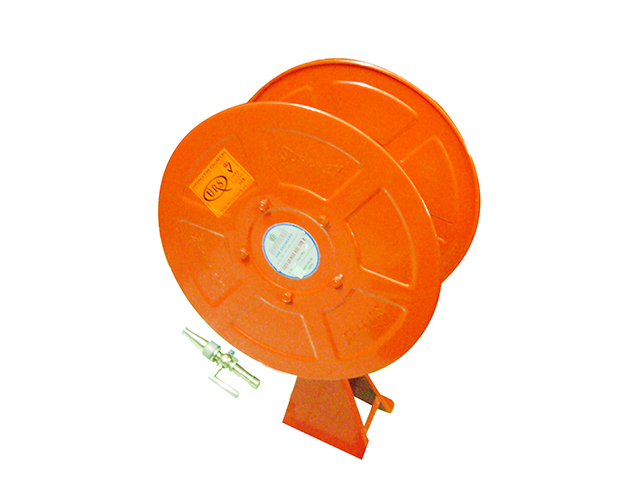

Hose Reel Drum with Hose Pipe

Larger View: Click on Image

(A) General Specifications
Type -A Swinging (180o wall mounting)
Nozzle IS : 8090 - 1976
Hose Reel tubing Hydraulic Rubber Hose IS : 444-1980, Thermo Plastics Hose IS:12585
Manufactured IS:884 / 85

(B) Dimensions
Side disc dia 500 mm.
Hub width 230 mm.
Wall bracket base to swing center 325 mm.
Mounting hole pitch in wall bracket 140 mm. 180 mm +- 10
Sheet thickness of Hub 1.2 mm.
Thickness of drum 1.5 mm.
Thickness of wall bracket 2.8 mm

(C) Material Used
Hub M.S. Sheet (IS : 513 - 1973)
Sides Mild Steel Sheet (1S : 513 - 1973)
Wall Bracket Mild Steel Sheet (IS : 513 - 1973)
Swivel Joint Leaded Tin Bronze (Grade LTB 2 of IS: 318 - 81)
Stop Valve IS : 778-1979
Pipe with fitting Steel as per IS : 1239 (Part - 1)

(D) Performance Test
Water Flow Rate 24 LPM (Litre Per Minute)
Test Pressure 7 Kgf/cm2 for Type-I , 10.2 Kgf/cm2 for Type-II

(E) Specification- IS: 884

(F) Warranty- 1 year.

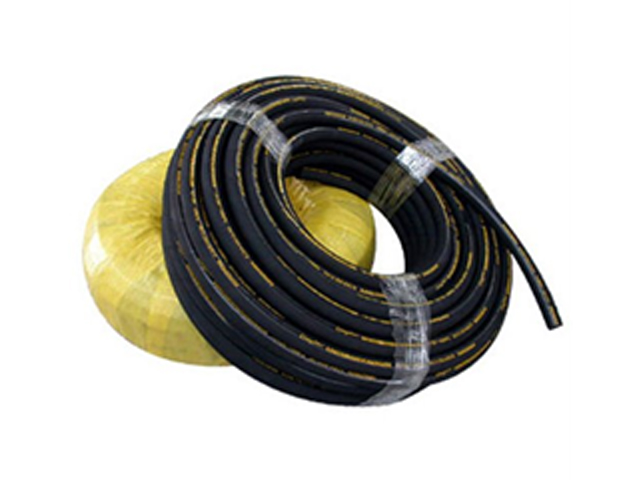

Hose Reel Pipe

Larger View: Click on Image
Material Thermoplastic Hoses (IS: 12585, Type-II) & Rubber Hoses (IS:444, Type-II)
Size 19mm
Available in  30 & 36.5 Mtr Roll

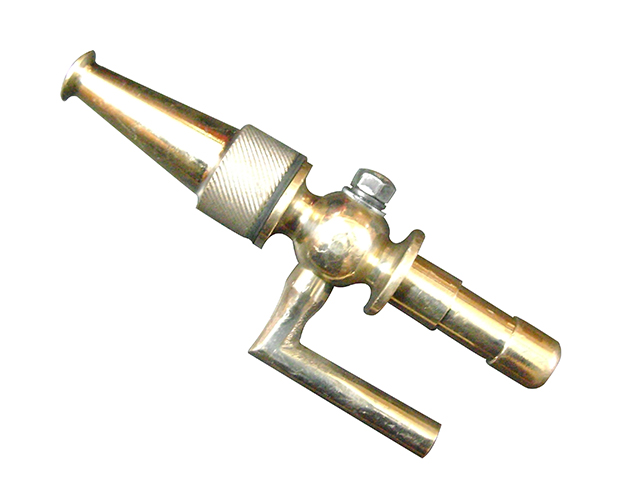

Shut Off Nozzel

Larger View: Click on Image
Material

Gunmetal (LTB-II) and ABS Plastic
Size 6 mm at Outlet and 19 mm at Inlet

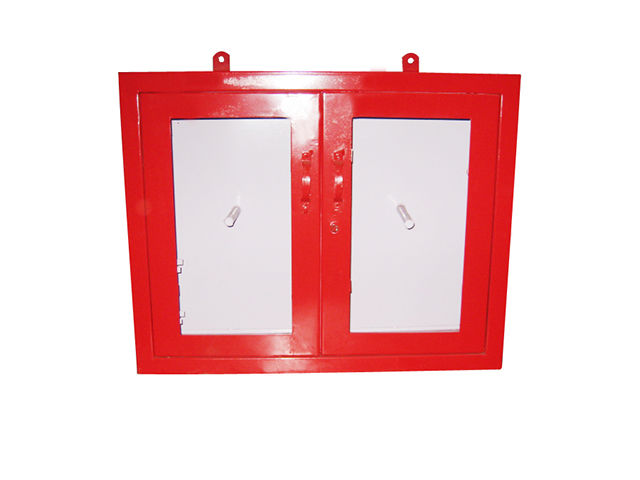

Fire Hose Cabinets / Hose Box

Larger View: Click on Image
Material

Mild Steel Sheet thick 1.4 - 2.0 mm (14 - 18 SWG) with 4-6 mm thick Glass in Front.

Sizes (in mm)

(1) 750 x 600 x 255
(2) 600 x 600 x 255
(3) 450 x 450 x 255
(4) 900 x 600 x 255
(5) 1200 x 900 x 450
(6) 1800 x 1000 x 900
(Many more other sizes are also available as per client requirement)
Warranty 1 year

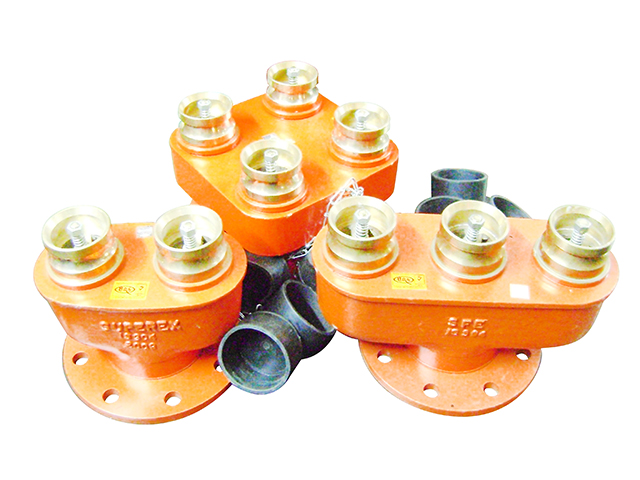

Suction Collecting Head / Fire Brigade Inlet Connection

Larger View: Click on Image

Two Way Collecting Head, Three Way Collecting Head, Four Way Collecting Head
Material Gunmetal Grade LTB-II, Cast Iron (or as per client requirement)
Size 63 mm dia male instantaneous
Specification

IS: 904

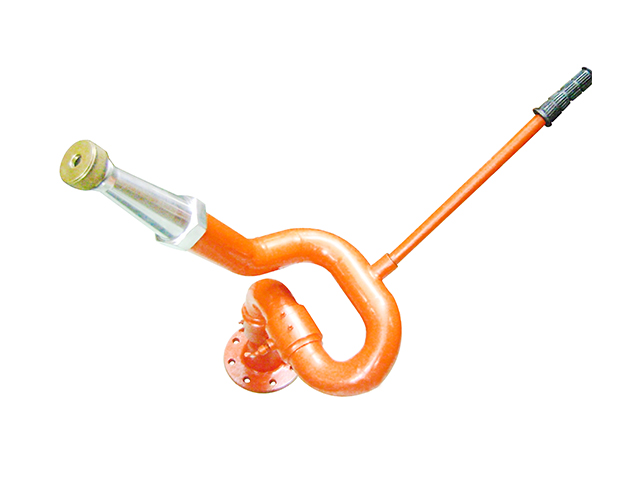

Water Monitor

Larger View: Click on Image

Stand Post Type Water And Foam Monitor (AS PER IS: 8442)
Size of Monitor 63 mm / 75 mm / 100 mm
Size of Inlet Flange 100 mm
Construction Welded from M. S. Seamless Pipes, Bends, etc.
Discharge Capacity 1750 / 2580 / 3500 LPM
Horizontal Throw 53-55 metres
Rotation

360o
Elevation 85o to 30o
Joint

Swivel Type (Gun-Metal)
Jet Spray Nozzle

Gun Metal or Aluminium
Operative Pressure 0.7 N/mm2 at nozzle end
Leakage Pressure To withstand a pressure of 2.3 N/mm2

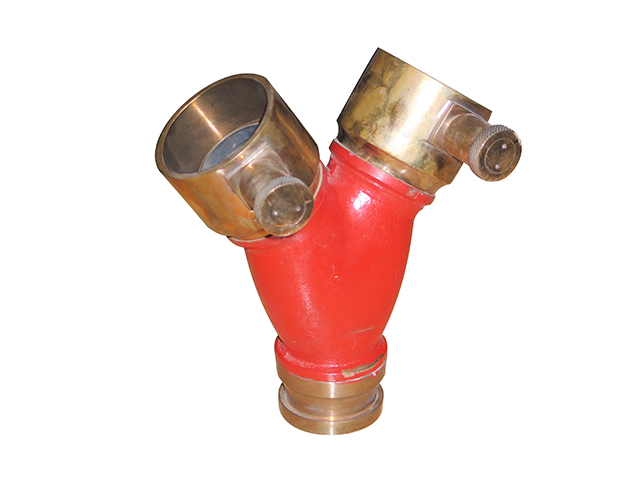

Breechings

Larger View: Click on Image

Dividing Breeching / Collecting Breeching
Material LTB-2/Aluminium Alloy
Outlet Two nos. Female adapters as per IS: 5290
Inlet One Male half coupling as per IS: 903
Specification As per IS: 905
Hydraulic Pressure To with stand a pressure of 21 Kgf/cm2 for a period of 2 minutes


Fire Man Axe

Larger View: Click on Image

Fire Man Axe ( AS PER IS: 926)
Material Steel Alloy
Tested Voltage 20000 Volts for a periodof 60 Sec.
Specification As per IS: 926

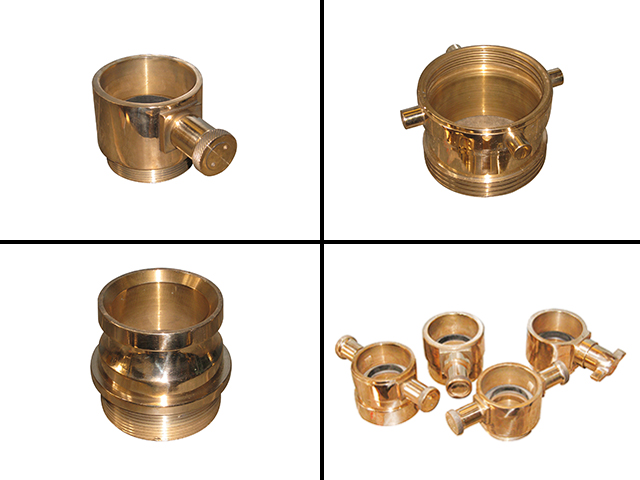

Adopters

Larger View: Click on Image

Adopters
Material Steel, Gunmetal LTB2, Aluminum
Sizes 38 – 63mm
Range Male and Female Adopter with Twist Release Type Lug, Pull Out Type Lug, Single Lug Type, Double Lug Type and others

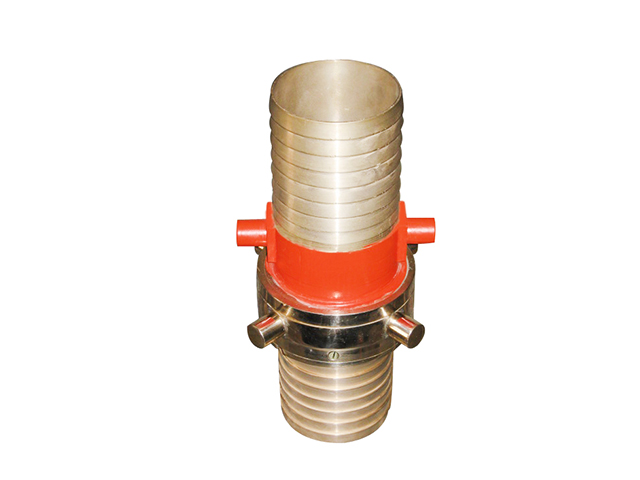

Suction Hose Coupling

Larger View: Click on Image

Suction Hose Coupling
Material Gunmetal LTB-2/Aluminium Alloy
Nominal Size of 75/100/140 mmCoupling
Specification As per IS: 902
Hydraulic Pressure To with stand a pressure of21 Kgf/cm2 for a period of 2minutes

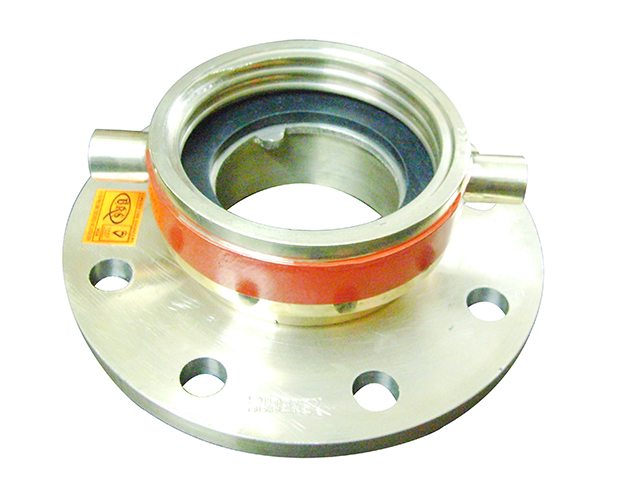

Draw Out Connection

Larger View: Click on Image

Draw Off Connection
Material Gun Metal(LTB -II)
Outlet 100 mm / 150 mm (threaded)
Inlet 100 mm / 150 mm
Flange DIA 220 mm / 280 mm
P.C.D OF HOLES 180 mm / 240 mm
Available in 100mm & 150mm

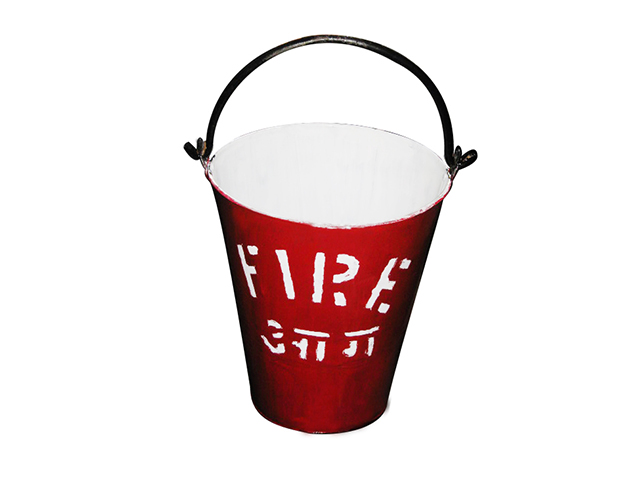

Fire Bucket With Stand

Larger View: Click on Image

Fire Bucket With Stand
Material Galvanized M.S. Sheet (Heavy Duty)
Capacity 9 ltrs
Feature Fire buckets can be utilized to store sand or water for emergency situations. Buckets are usually painted red with the word FIRE stenciled across in white.

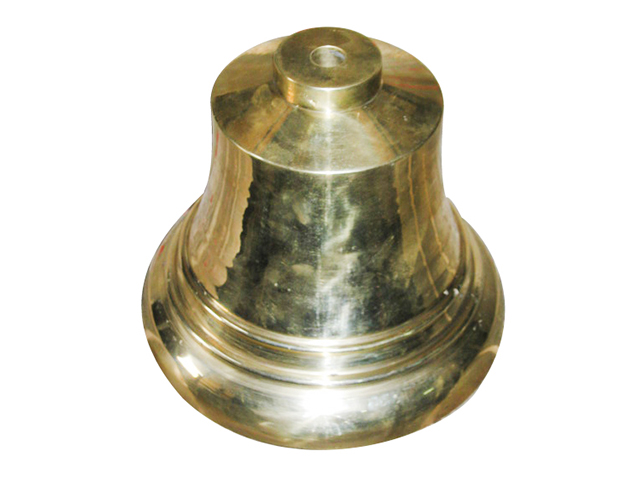

Fire Bell

Larger View: Click on Image

Fire Bell
Material Gun Metal(LTB -II)

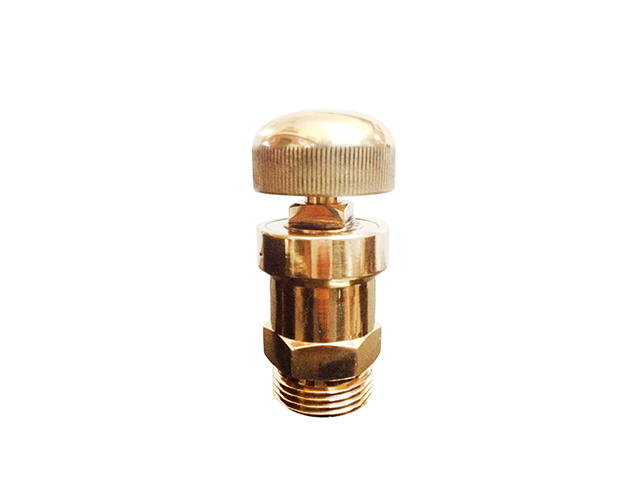

Air Release Valve

Larger View: Click on Image

Air Release Valve
Material Gun Metal(LTB -II)
Size 25mm

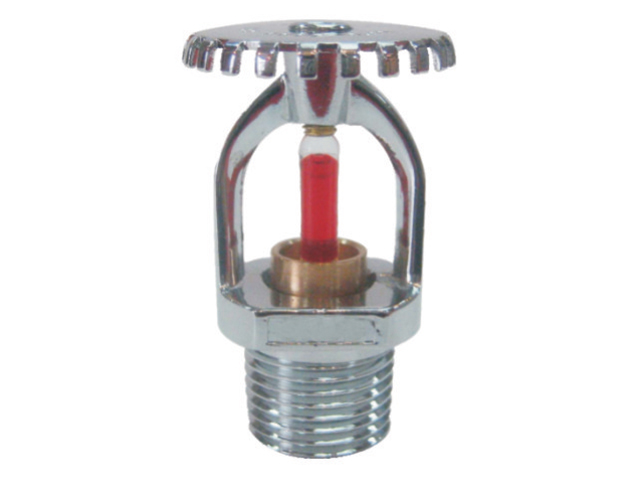

Sprinklers

Larger View: Click on Image

Sprinklers
Material Gun Metal(LTB -II), ABS Plastic
Size 15 mm & 25 mm in Pendent, Upright & Side Wall type
Nominal Operating Temperature and Colour Code

•570(1350F) - Orange
•680(1550F) - Red
•790(1750F) - Yellow
•930(2000F) - Green
•1410(2860F) - Blue
•1820(3600F) - Mauve


Fire Beater

Larger View: Click on Image

Fire Beater
Material Gun Metal(LTB -II), ABS Plastic
Size 38 – 63mm

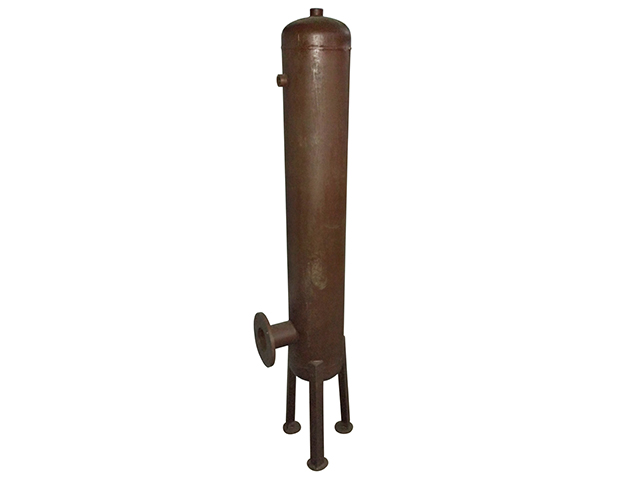

Air Cushion Tank

Larger View: Click on Image

Air Cushion Tank / Air Vessel
Material Gun Metal(LTB -II), ABS Plastic
Size (mm) Normally 200 dia x 1200 length, 200 dia x 1000 length, 450 dia x 2000 length or as per client requirement.
M.S. Sheet Thickness (SWG) 6-8 mm
Accessories attached Pressure Gauge, Air Release Valve, Wheel Valve dia 25 mm or as per client requirement.
Connection Flanged


Blank Caps

Larger View: Click on Image

Blank Caps
Material Gun Metal(LTB -II), ABS Plastic
Size 38 – 63mm

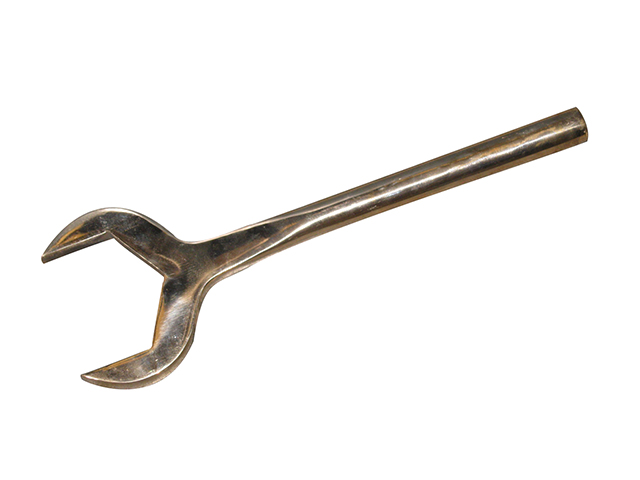

Nozzel Spanner

Larger View: Click on Image

Nozzel Spanner
Material Gun Metal(LTB -II)

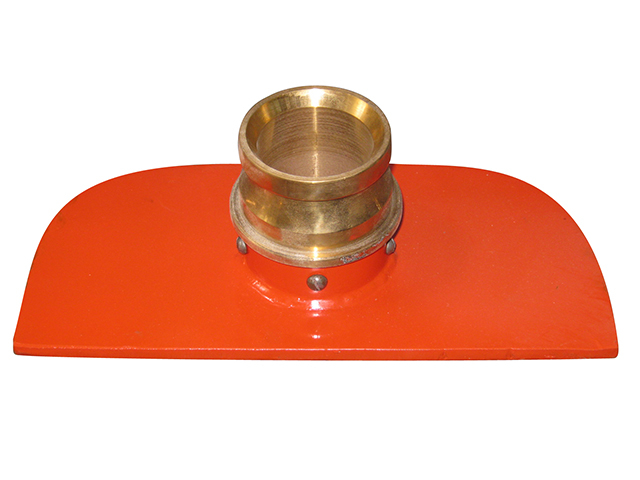

Water Curtain Nozzel

Larger View: Click on Image

Nozzel Spanner
Material M.S. Flange with 63mm Gunmetal (LTB-II) Adopter
Inlet Size 63mm

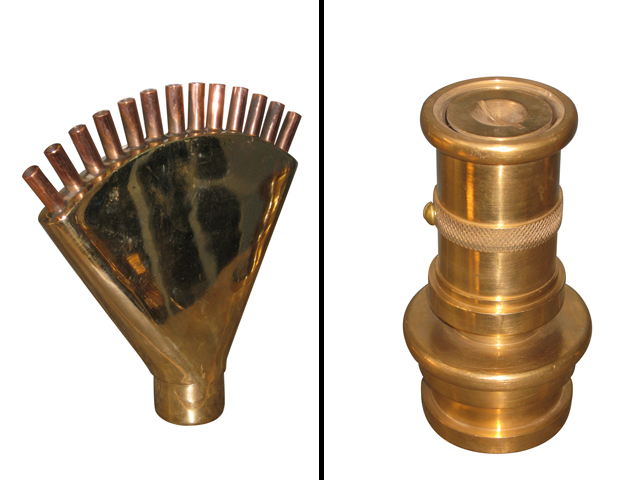

Spray Nozzels

Larger View: Click on Image

Spray Nozzels
Material Gun Metal(LTB -II)

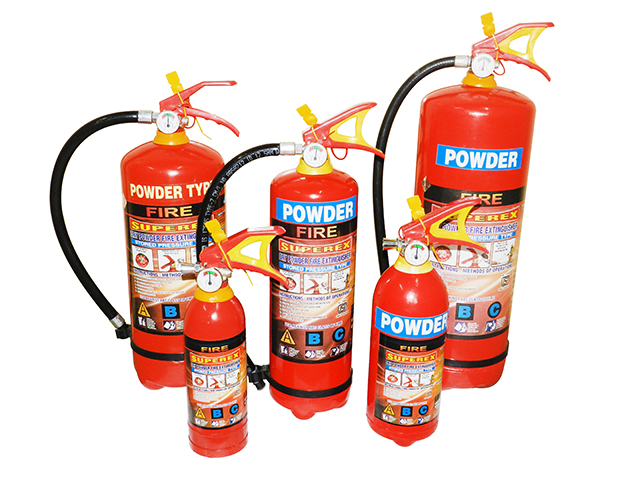

Powder Type Fire Extinguishers

Larger View: Click on Image

Dry Chemical Powder Fire Extinguisher IS : 15683 - 2006 (Stored Pressure) Type

SPECIFICATION AND AVAILABILITY
Available Available in both ABC and BC Class in both Stored Pressure and Gas Cartridge (DCP) Type
Capacity 1kg, 2kg, 4 kg, 6kg & 9 Kg
Extinguishing Media Dry Powder Mono Ammonium phosphate & Dry Nitrogen
Effective discharge (%) Min 90%



Model

SF 11

SF 12

SF 14

SF 16

SF 19
Capacity 1 kg 2 kg 4 kg 6 kg 9 kg
Fire Rating 1A,8B,C 1A,8B,C 2A,21B,C 3A,21B,C 4A,34B,C
Operating Temperature (ËšC) -10 to + 55 -10 to + 55 -10 to + 55 -10 to + 55 -10 to + 55
Average Discharge Time 12 sec. 14 sec. 18 sec. 24 sec. 30 sec.
Service pressure 15 bar 15 bar 15 bar 15 bar 15 bar
Text Pressure 35 bar 35 bar 35 bar 35 bar 35 bar
Minimum jet Length (mtrs) 2 Mtrs. 2 Mtrs. 2 Mtrs. 2 Mtrs. 2 Mtrs.
IS Specifications 15683 15683 15683 15683 15683

Operation method Upright
Type of fire ABC/ BC class
Approval ISI marked, IS: 15683:2006

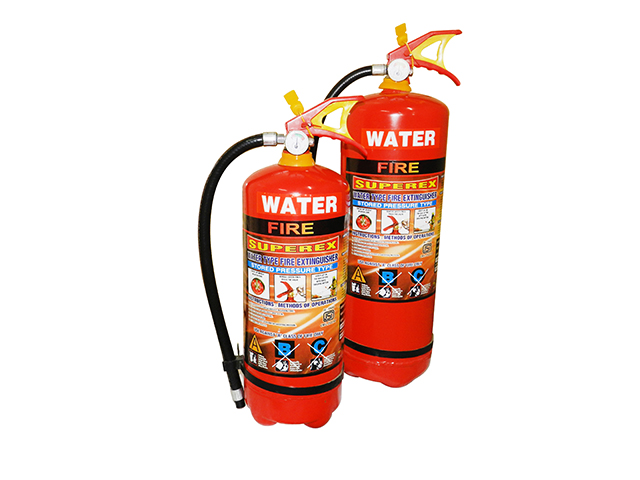

Water Type Fire Extinguishers

Larger View: Click on Image

Water Type Fire Extinguisher (Stored pressure) IS: 15683 - 2006
Capacity 6, 9, 50 Ltrs
Extinguishing Media Soft Water
Effective discharge (%) Min 95%
Model SF 26 SF 29 SF 250
Capacity 6Ltrs. 9 Ltrs. 50 Ltrs.
Fire Rating 2A 3A --
Operating Temperature (deg c) +5 to 55 +5 to 55 +5 to 55
Average Discharge Time 25 sec. 40 sec. 80 sec.
Service Pressure 15 bar 15 bar N.A.
Test Pressure 35 bar 35 bar 35 bar
Minimum Jet Length (mtrs) 2 Mtrs. 2 Mtrs. 10 Mtrs.
IS Specifications 15683 15683 As per IS 13385

Availability In Squeeze Grip (Stored Pressure) Type and Cartridge Type
CO2 Gas Cartridge (gms)  60 gms and 300 gms, IS : 4947
Operation method  IUpright
Type of Fire  A - Class
Approval ISI marked conforming to IS: 15683:2006

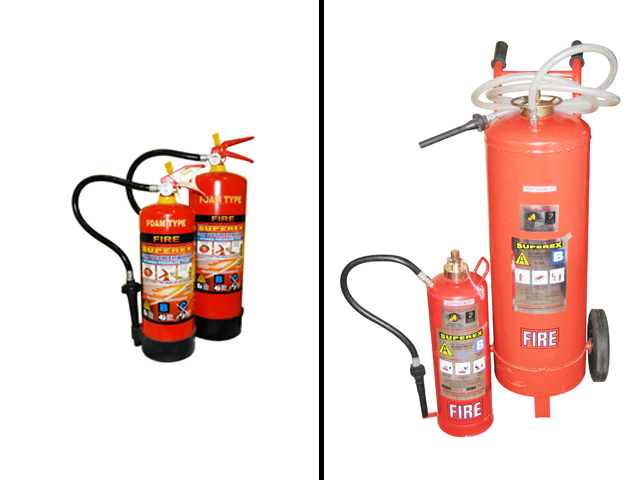

Foam Type Fire Extinguishers

Larger View: Click on Image

Mechanical Foam Type Fire Extinguisher, IS: 15683:2006
Capacity 6, 9, 50 Ltr
Extinguishing Media Aqueous Film Forming Form (AFFF)
Effective discharge (%) Min 90%



Model

SF 26

SF 29

SF 250
Capacity 6 Ltrs. 9 Ltrs. 50 Ltrs.
Fire Rating 2A,21B 3A,34B --
Operating Temperature (Deg C) +5 to + 55 +5 to + 55 +5 to + 55
Average Discharge Time 25 sec. 40 sec. 80 sec.
Service Pressure 15 bar 15 bar N.A.
Test Pressure 35 bar 35 bar 35 bar
Minimum Jet Length (mtrs) 2 Mtrs. 2 Mtrs. 10 Mtrs.
IS Specifications 15683 15683 As per IS 13386

Availability In Squeeze Grip (Stored Pressure) Type and Cartridge Type
CO2 Gas Cartridge (gms) 60 gms and 300 gms, IS: 4947
Operation method Upright
Type of Fire AB Class
Approval ISI marked conforming to IS: 15683:2006

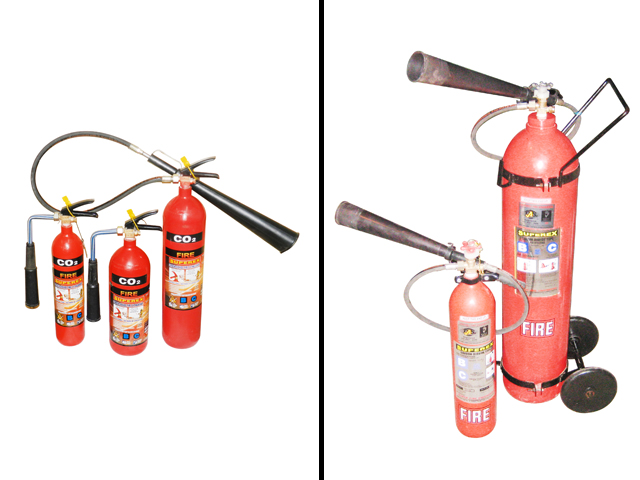

CO2 Type Fire Extinguishers

Larger View: Click on Image

CO2 Type Fire Extinguisher: 15683:2006 & IS: 2878 - 1986

Cylinder Body Seamless Tube IS 7285
Extinguishing Media CO2
Effective discharge (%) Min 95 %




Model

SF 42

SF 43

SF 44

SF 46

SF 49

SF422
Capacity 2 kg 3 kg 4.5 kg 6.5 kg 9 kg 22.5 kg
Fire Rating 8B, C 13B, C 21B, C 55B, C 70B, C 89B, C
Filling Ratio 0.667 0.667 0.667 0.667 0.667 0.667
Operating Temperature (ËšC) -20 to + 55 -20 to + 55 -20 to + 55 -30 to +55 -30 to +55 -30 to +55
Average Discharge Time 9 sec. 9 sec. 12 sec. 15 sec. 20 sec. 30 sec.
Text Pressure 250 bar 250 bar 250 bar 250 bar 250 bar 250 bar
Minimum jet Length (mtrs) 1 Mtr. 1 Mtr. 2 Mtr. 2.5 Mtr. 3 Mtr. 3 Mtr.
IS Specifications 15683 15683 15683 2878 2878 2878

Operation Method Upright
Type of Fire B & C Class
Approval ISI marked
Specification IS: 15683 and 2878.

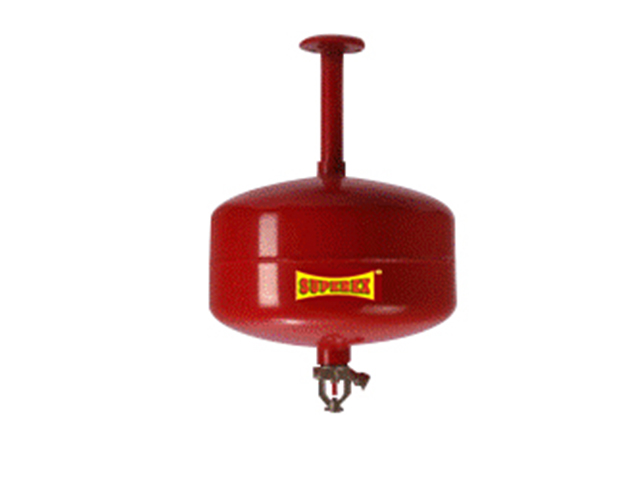

Moduler (SELF TRIGGERED STAND ALONE CEILING MOUNTING TYPE) FIRE EXTINGUISHER

Click here to Enlarge

Moduler (SELF TRIGGERED STAND ALONE CEILING MOUNTING TYPE) FIRE EXTINGUISHER

Capacities 5, 10, 15 kg
Media ABC Powder / Clean Agent
Test Pressure 30kgf/cm2 Service Pressure: 15 kgf/cm2
Type of Fire ABC Class
Anti CorrosiveTreatments Powder Coated
Effective Discharge 95%
Specification As per IS: 926

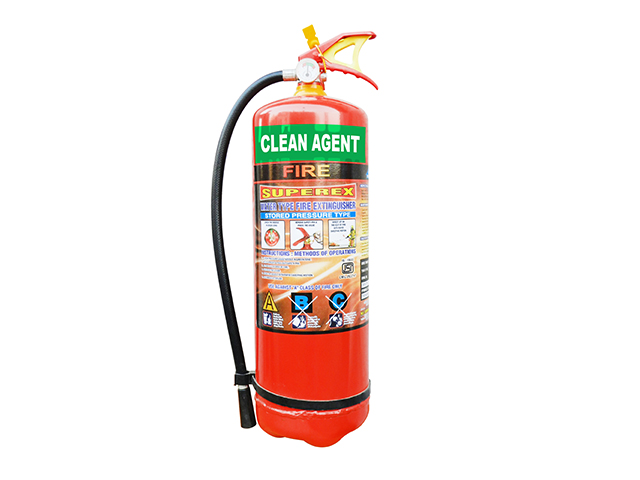

Clean Agent Fire Extinguisher

Click here to Enlarge

Clean Agent Fire Extinguisher
Capacities 2, 4, 6 kg
Media NAF PIV, HCFC & HFC as per IS:15493
Test Pressure 35kgf/cm2, Service Pressure: 15 kgf/cm2
Type of Fire ABC Class
Anti CorrosiveTreatments Powder Coated
Applications Material like wood paper, cloth flammable gas, liquid petrol, paints solvents & electricity started fires & all classes of fire.


Copyright © 2012-16 by SUPEREX FIRE ENGINEERS All Rights Reserved. | Website Maintain By : Purna Solutions
